Schmersal

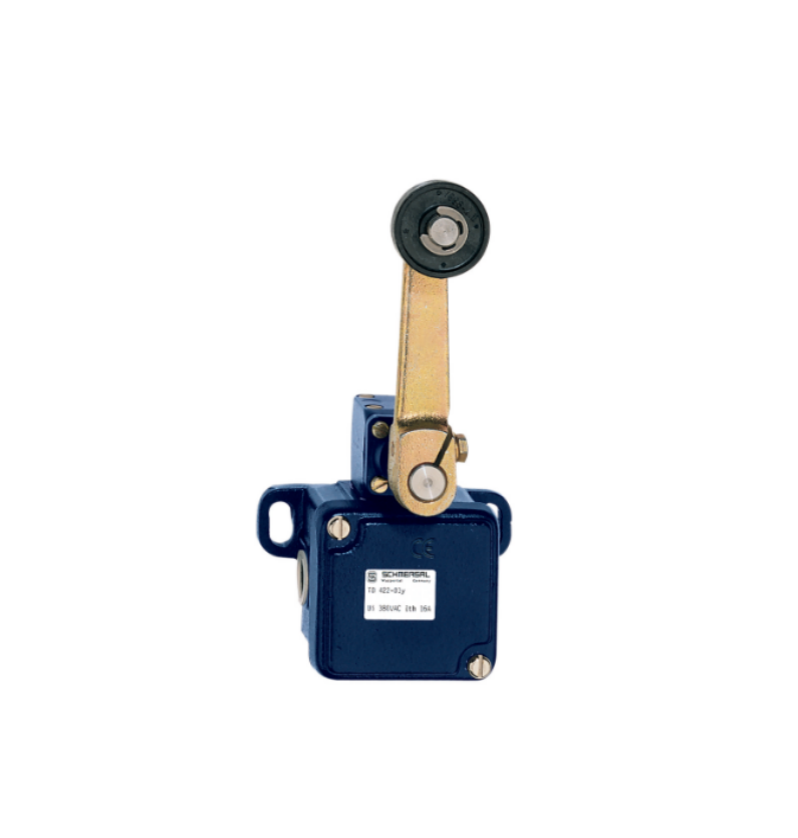

TD422 Position switch
- 1 Contact、Metal enclosure、Protection class IP65
Characteristic
2 cable entries M 20 x 1.5
Lever can be transposed by 180°
106 mm x 71 mm x 63 mm (basic component)
Continuous adjustment of lever position 360°
Actuator head can be repositioned in steps 4 x 90°
In temperature-resistant version, the roller can be mounted in two different positions on the shaft
Application range
- Construction Machinery
| Mechanical data | |
| Actuating element | Roller lever |
| Mechanical life, minimum | 10,000,000 Operations |
| Actuating angle, from left of switch axis | 30 ° |
| Actuating angle, from right of switch axis | 30 ° |
| Contact opening | 2 x 6 mm |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 3 m/s |
| Electrical data | |
| Thermal test current | 16 A |
| Utilisation category AC-15 | 400 VAC |
| Utilisation category AC-15 | 4 A |
| Switching element | Normally open contact (NO) |
| Note (Switching element) | with double break |
| Switching principle | Creep circuit element |
| Ambient conditions | |
| Ambient temperature[℃] |
-30...90 |
| Protection rating | IP 65 to IEC/EN 60529 |

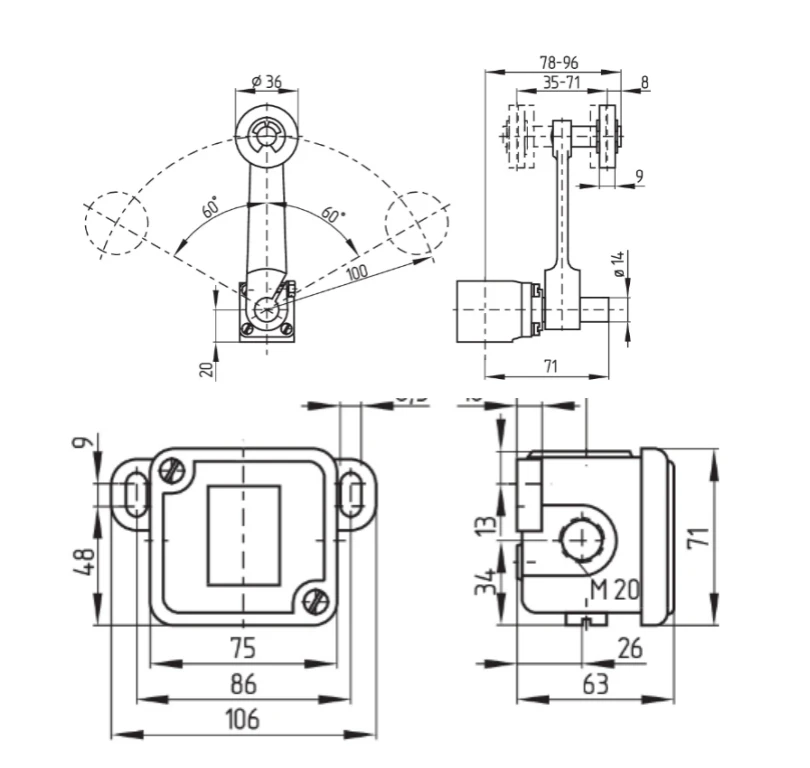

Structure diagram
