IFM

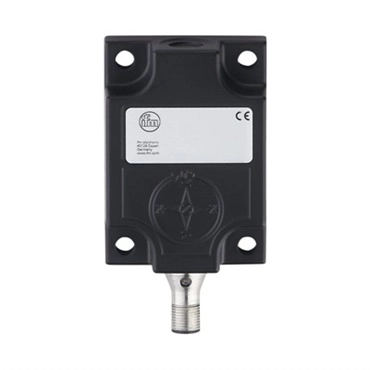

JD2110 Inclination sensor
- INC-M2M180C-1-KG、US-H
Characteristic
Fusion of acceleration sensor and gyroscope (IMU)
Compensation of external accelerations
High measurement accuracy in the case of dynamic movement
Compact and robust housing
Application range
- Construction Machinery、industrial automation
|
Electrical data |
|
|
Operating voltage |
9...30 V DC |
|
Measuring |
|
| Number of measurement axes | 2; (X/Y) |
| Angular range [°] | ± 90 |
|
Measuring range acceleration [g] |
± 4 |
| Accuracy / deviations | |
| Dynamic measurement | ± 0.5 |
| Static measurement | ± 0.3 |
| Tests / approvals | |
|
MTTF [years] |
23 |
| Ambient conditions | |
| Ambient temperature[℃] |
-40...85 |
| Protection rating | IP 67; IP 68; IP 69K |
