IFM

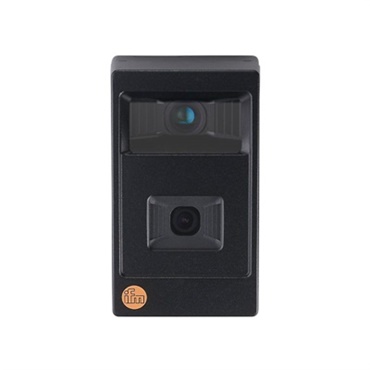

O3M261 3D sensor
- O3MXOOKG、CAN、E3、GM、A1、95
Characteristic
Reliable 3D detection of scenes and objects
Suited for use in mobile machines
Reliable distance measurement due to time-of-flight measurement
With integrated 2D camera and overlay function
Indication of warnings and obstacles in the live view
Application range
- Construction Machinery、industrial automation
| Product characteristics | |
| Type of light | infrared light |
| Image resolution [px] | 720 x 576 |
| Communication interface | CAN; Ethernet |
| Operating voltage [V] | 9...32 DC |
| Protection rating | IP 67; IP 69K; (with mounted connectors or protective caps) |
|
Detection zone |
|
| Image resolution [px] | 720 x 576 |
| Image resolution 3D [px] | 64 x 16 |
| Angle of aperture [°] | 120 x 90 |
| Angle of aperture 3D [°] | 95 x 32 |
| Image repetition frequency [Hz] | 25 |
| Image repetition frequency 3D [Hz] | 25 / 33 / 50 |
