Characteristic
Designed for crane machines
Limit lifting height
Aluminum housing; High protection class; Safe and reliable; Long life
Loop or drawstring type with guard plate optional
Work under harsh environment
Application range
- Widely used in crane machines, such as truck cranes, all-terrain cranes, tyre cranes, crawler cranes, port cranes
| Electrical data | |
| Operating voltage [V] | 12/24 DC |
| Operating current [A] | 1 |
| Mechanical data | |
| Mechanical life, minimum | 1,500,000 Operations |
| Ambient conditions | |
| Ambient temperature[℃] | -30...90 |
| Protection rating | IP 67 |

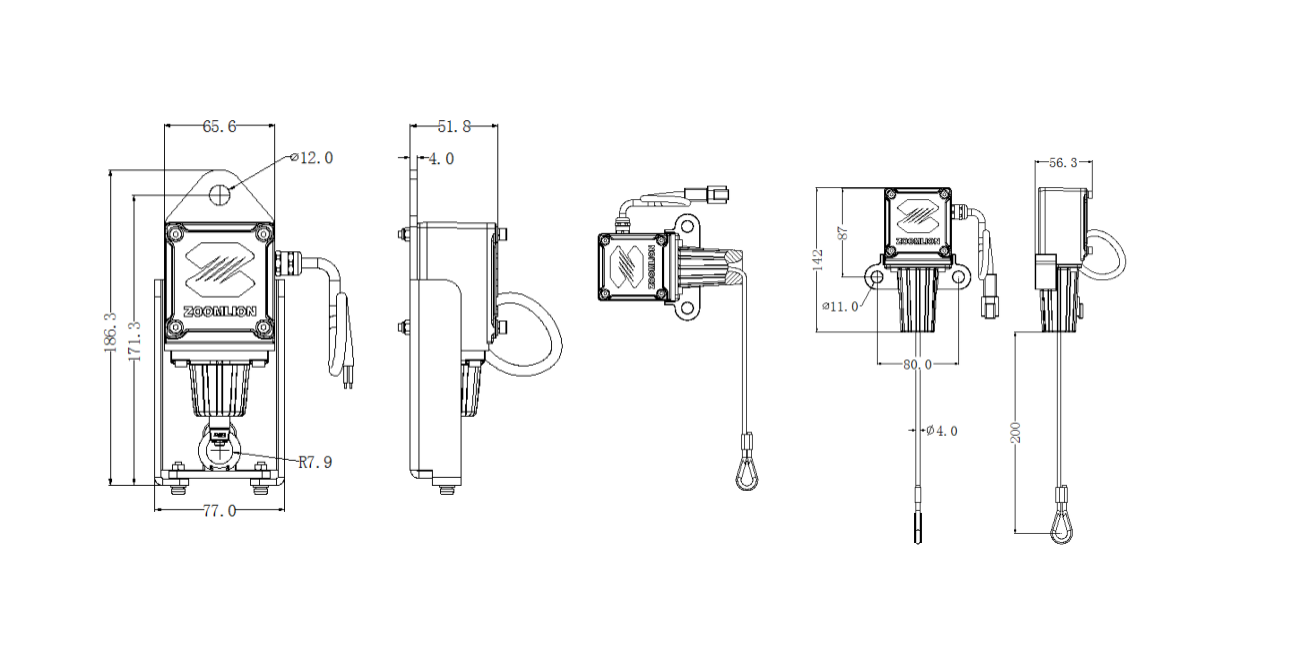

Structure diagram
